CIJ and DOD printers.

We manufacture two families of industrial inkjet printers: the DV-C500 for fast, small-character coding, and the DV-L500 for large characters.

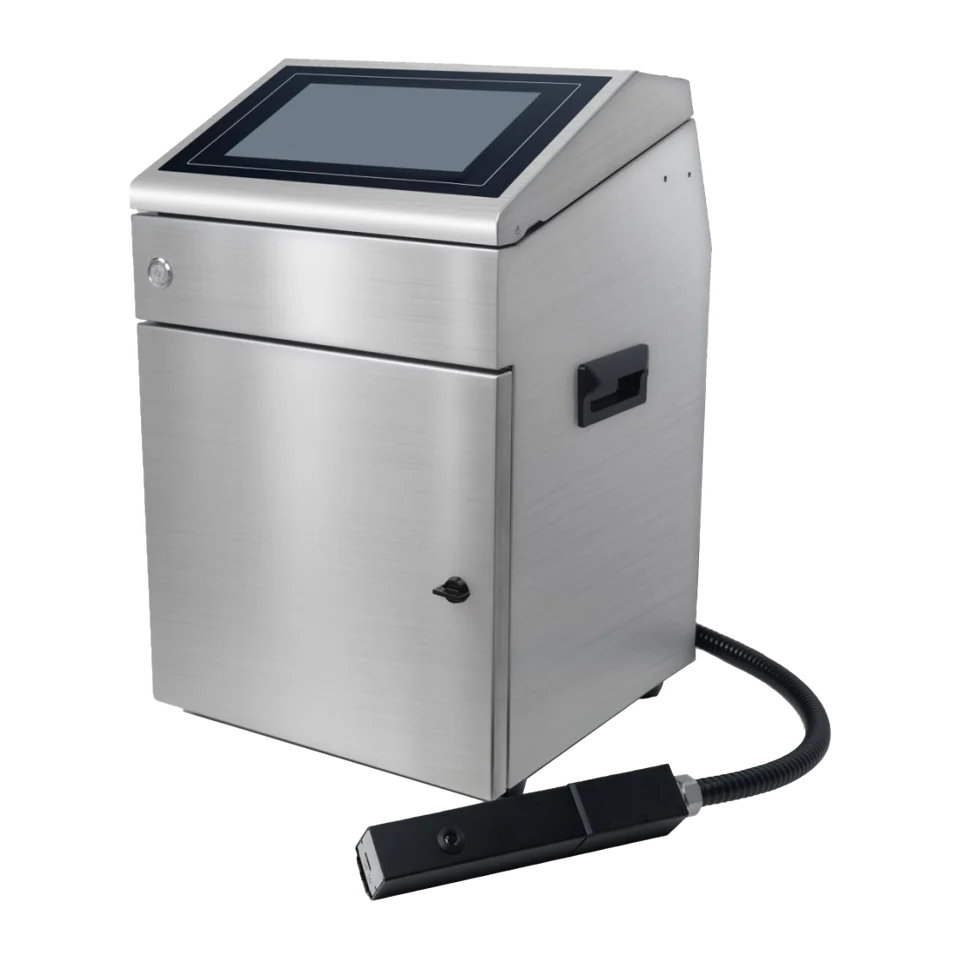

DaVinci DV-C500 continuous inkjet printer: stainless-steel cabinet with touchscreen and printhead on a flexible conduit.

Continuous inkjet (CIJ)

DV-C500 Series

High-speed coding of dates, batch and lot numbers on almost any surface.

max line speed
384m/min
character height
2–20mm
print lines
1–5
stainless-steel cabinet
IP55
  • 10.1″ industrial colour touchscreen
  • Inks for glass, metal, plastics, food packaging and high-temperature surfaces, in 7 colours
  • Barcodes, QR, DataMatrix and GS1 codes, serial numbers and live data from databases or scales
  • Automatic nozzle and return-line cleaning at shutdown
  • USB, RS232, Ethernet and MES connection
Ask about the DV-C500

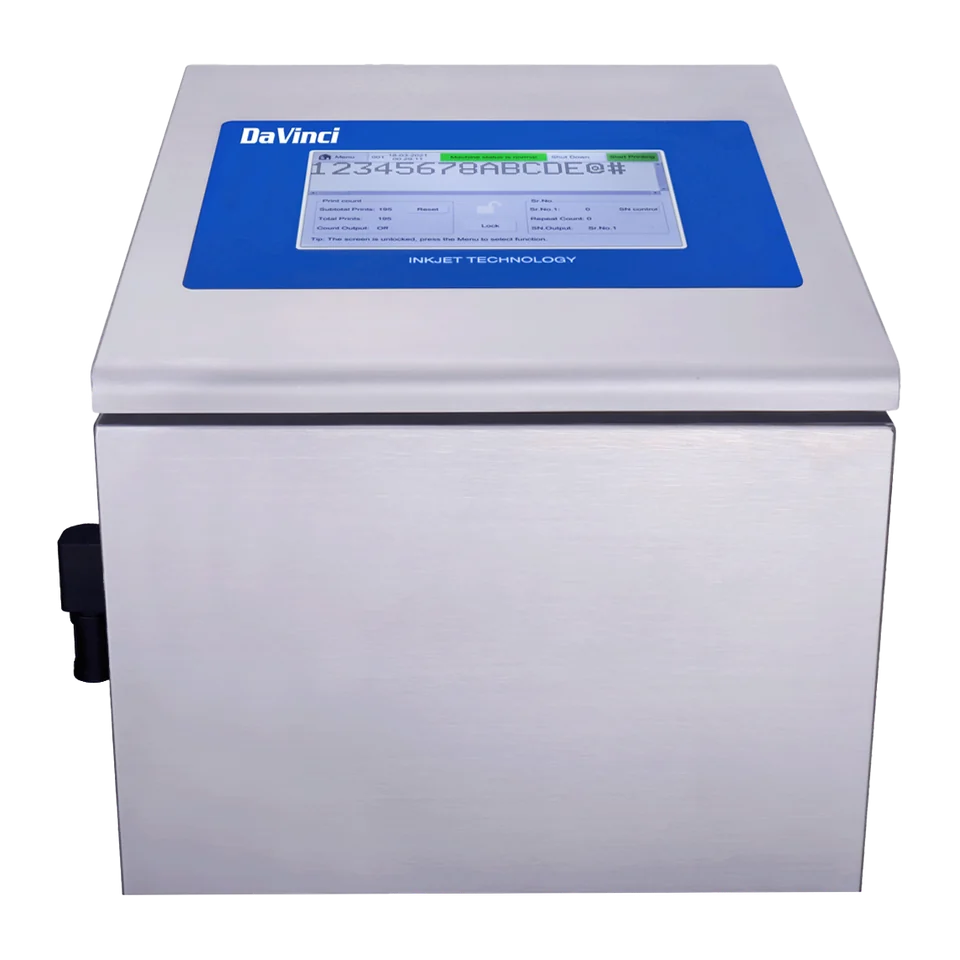

DaVinci DV-L500 large-character printer: stainless-steel cabinet with a blue DaVinci touchscreen panel.

Drop-on-demand (DOD) · large character

DV-L500 Series

Large, bold text, codes and logos on cartons, pipes, boards and other big surfaces.

max character height
124mm
print lines
1–4
max line speed
63m/min
stainless-steel cabinet
IP65
  • No compressed air needed — a built-in gear pump supplies the ink
  • 7-, 16- and 32-dot printheads (DV-L500-7, -16 and -32); DV-L500A models add automatic cleaning
  • 7″ industrial colour touchscreen
  • Porous and non-porous surfaces, with 7 ink colours including white
  • Built-in calculator estimates the printing cost of each message
Ask about the DV-L500

Side by side

DV-C500 or DV-L500?

Continuous inkjet (CIJ)

DV-C500 Series

chargedeflectiongutterproduct
Best for
Small, fast codes: dates, batch and lot numbers, barcodes
Max line speed
384 m/min
Character height
2–20 mm
Print lines
1–5
Typical surfaces
Bottles, cans, cables, pipes, components, food and pharma packaging
Ink types
High-adhesion, high-temperature, glass, food-grade, oil-resistant, pigmented
Touchscreen
10.1″
Protection
IP55
Dimensions
485 × 242 × 664 mm
DV-C500 Series details

Drop-on-demand (DOD) · large character

DV-L500 Series

print signal → droplet only where required
Best for
Large text, codes and logos on big surfaces
Max line speed
63 m/min
Character height
5–124 mm
Print lines
1–4
Typical surfaces
Cartons, boxes, pipes, boards, stone, painted surfaces
Ink types
Ketone, water, alcohol, acetone and pigment-based
Touchscreen
7″
Protection
IP65
Dimensions
296 × 296 × 490 mm
DV-L500 Series details

Both printers have

  • 304 stainless-steel cabinet
  • 3–30 mm printhead-to-product distance
  • RFID smart consumables that prevent wrong-fluid errors
  • Dates, shift codes, counters, serial numbers, barcodes and QR codes
  • Prints in 40+ languages
  • Photocell, encoder and alarm-lamp connections
  • USB, RS232 and network
  • 100–240 V AC

Choosing a printer

Four questions that decide it.

  1. How big does the mark need to be?

    Small codes up to 20 mm suit CIJ. Large text and logos up to 124 mm suit the DV-L500.

  2. How fast is your line?

    The DV-C500 keeps up with lines running at up to 384 m/min.

  3. What are you marking on?

    Material, shape and finish decide the ink — and often the printer.

  4. What is the environment like?

    Dust, moisture and washdown routines affect the protection rating you need.
